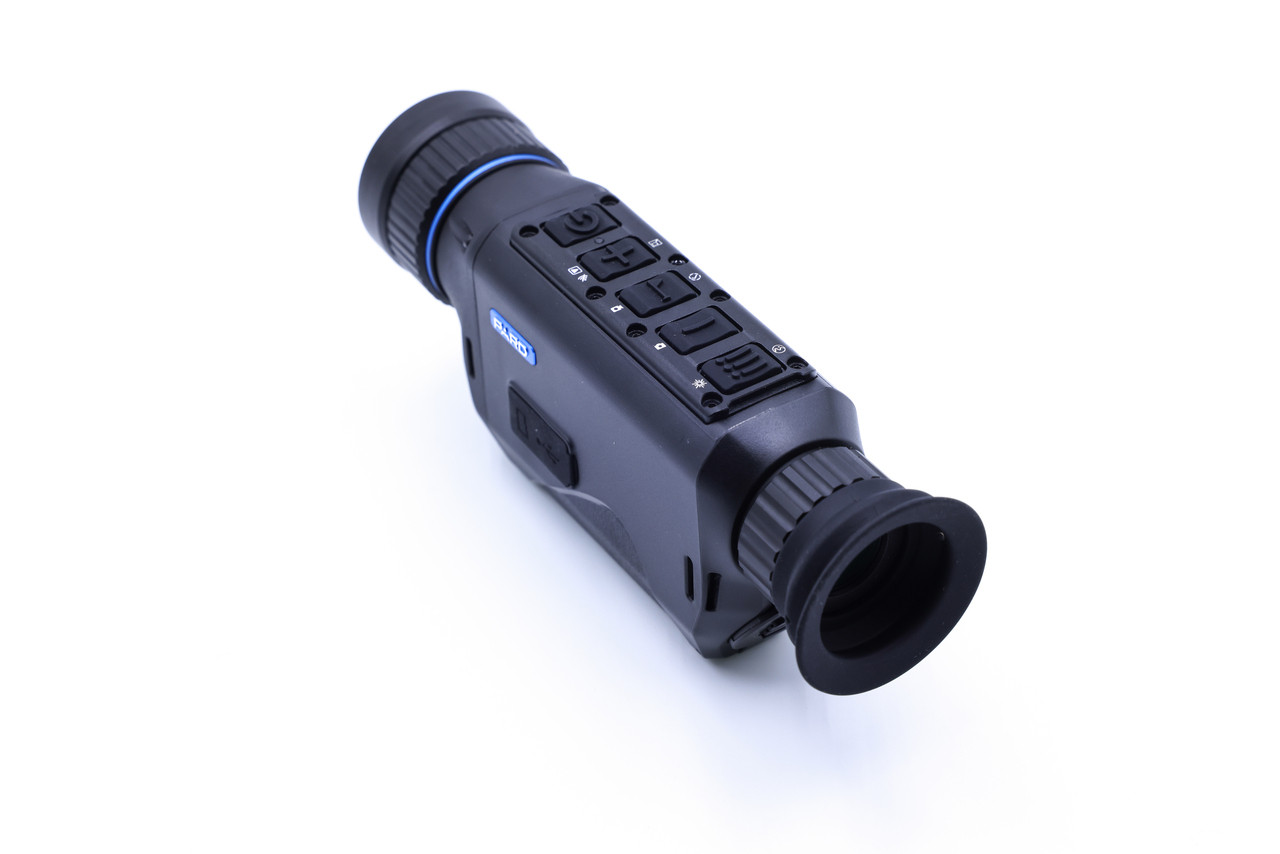

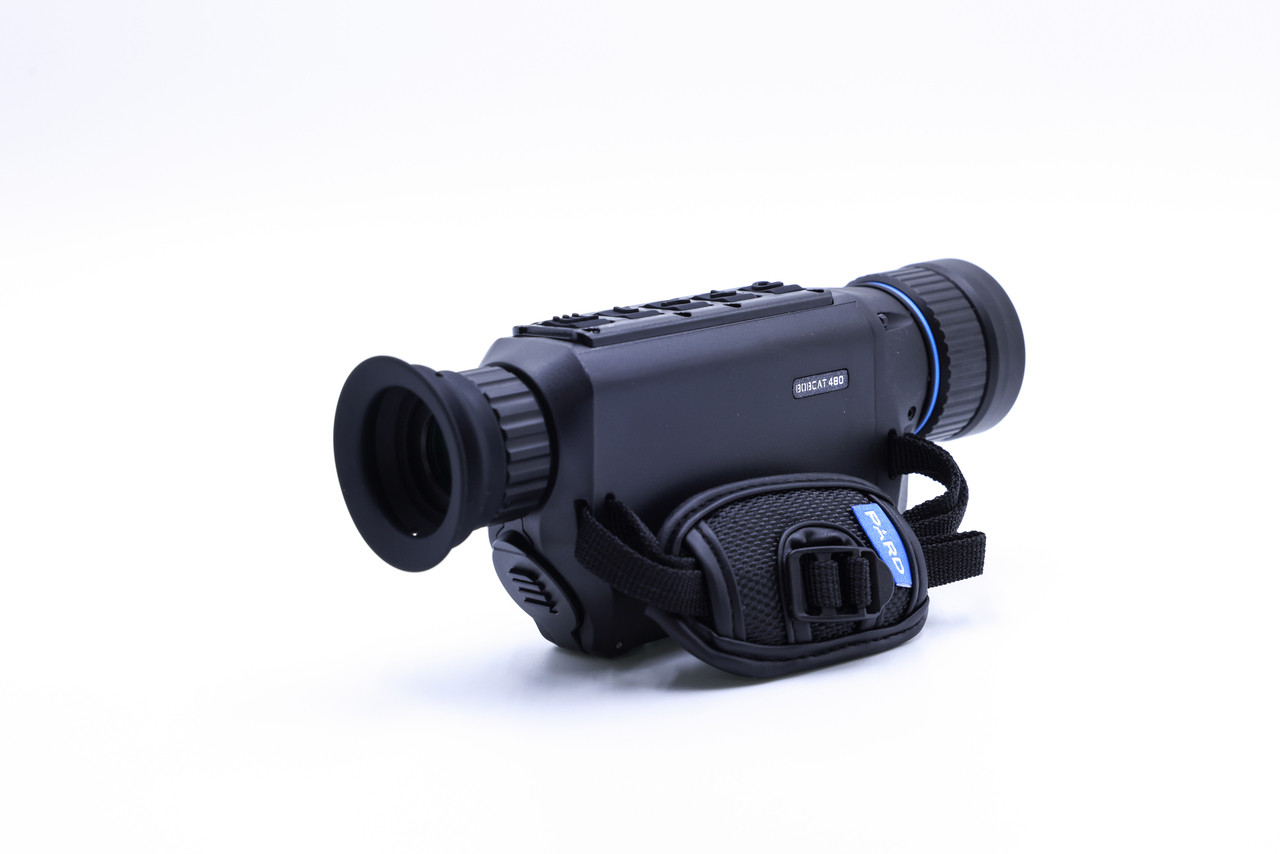

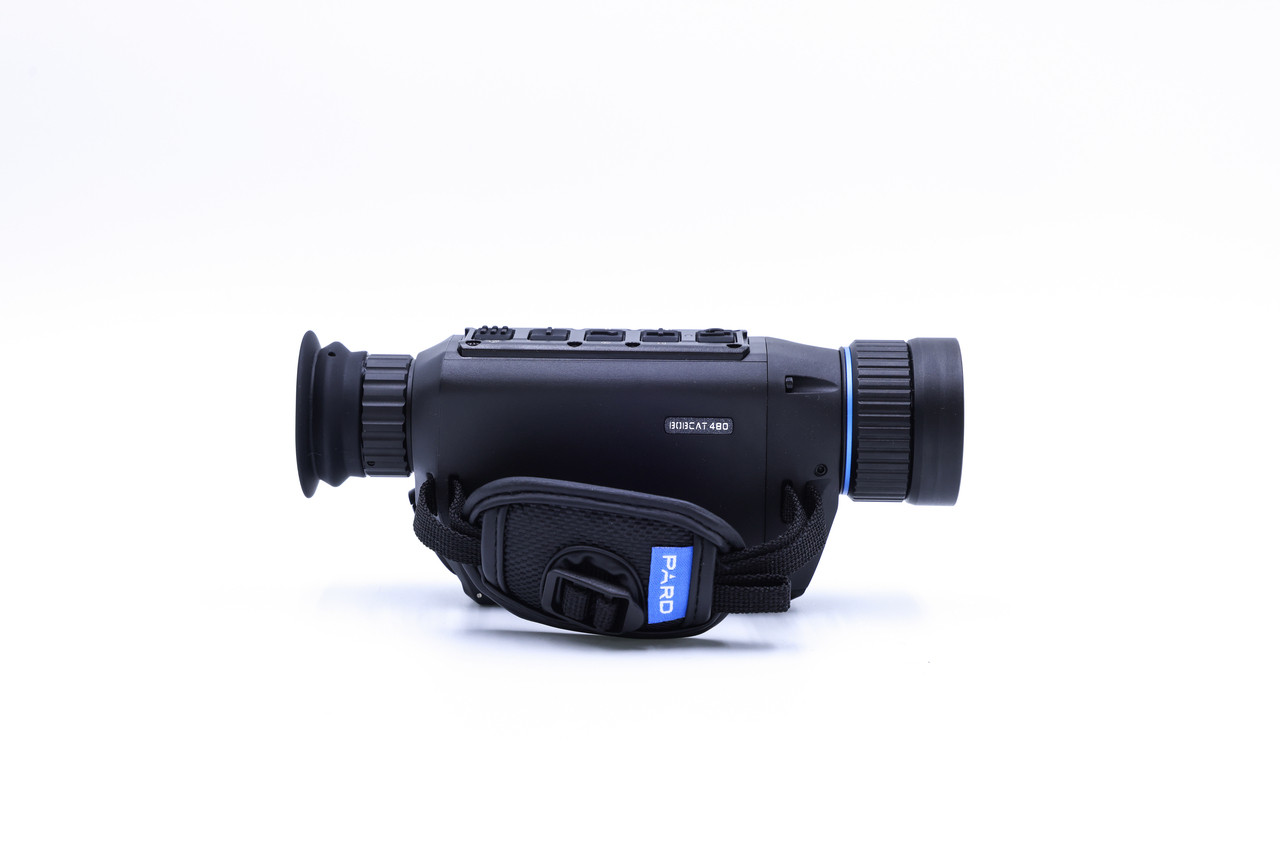

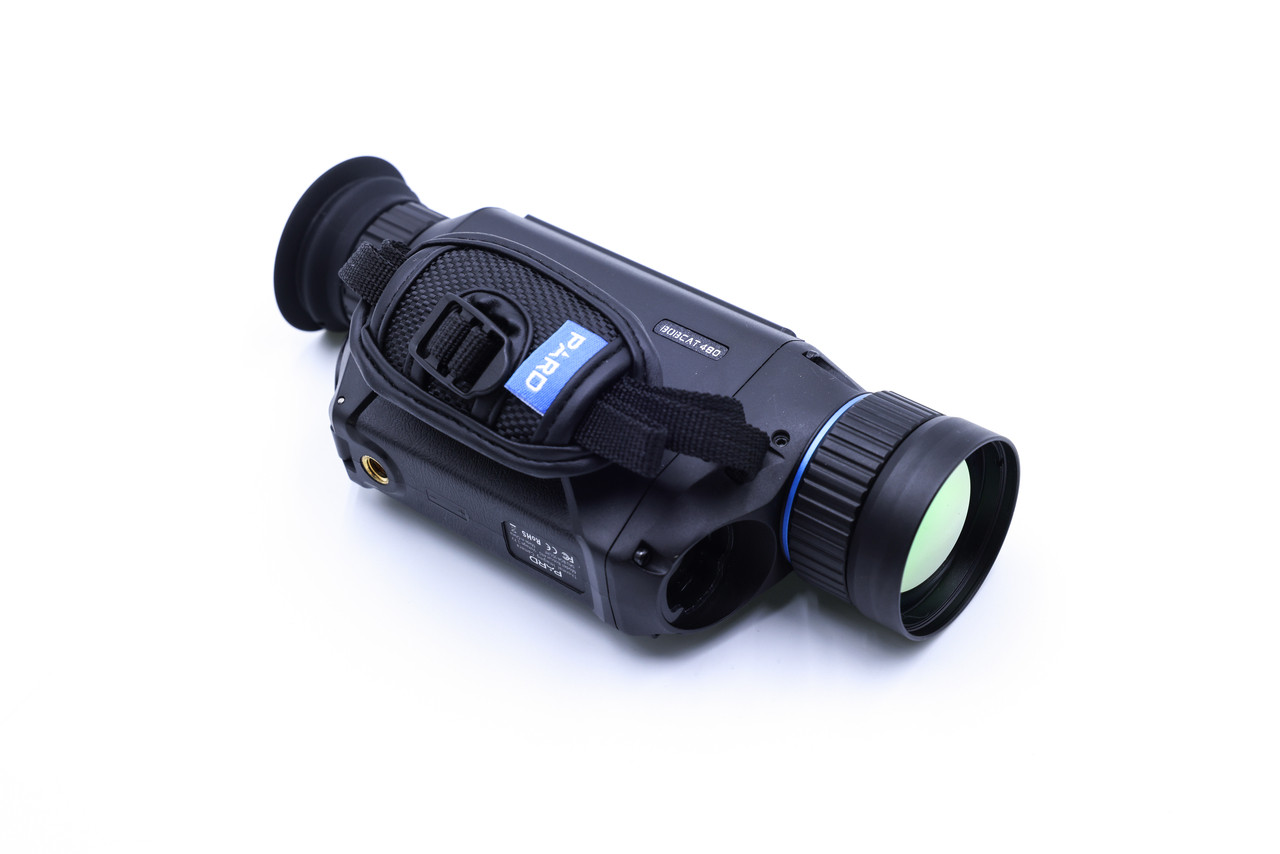

The PARD Bobcat Series (640 & 480) delivers cutting-edge thermal imaging performance in a remarkably compact and easy-to-handle design. Engineered for maximum portability, it uses an all-new generation sensor with NETD ≤ 18mK, allowing it to detect the smallest temperature differences and produce crisp, high-contrast thermal imagery.
The 1920x1080 OLED display enhances brightness, resolution, and contrast, providing true-to-life clarity even in complete darkness. Built for the field, the Bobcat’s rugged construction and intuitive layout make it ideal for extended use—compact, capable, and ready for action wherever you go.
The Bobcat 480 offers a 480x360 thermal sensor, balancing clarity and efficiency for users who need dependable detection in a lightweight, accessible package. It’s perfect for hunters and outdoor enthusiasts seeking professional-grade performance without bulk.
The Bobcat 640 steps up with a 640x512 sensor, delivering exceptional definition, refined contrast, and superior long-range recognition. Designed for those who demand precision detail, it excels in both professional and recreational environments.
ModelBobcat 480, Bobcat 640
ClassificationThermal Imaging monocular
Sensor TypeUncooled VOx (vanadium oxide)
480 Sensor Resolution(pixel)480*360
640 Sensor Resolution(pixel)640*512
Pixel size(μm)12*12
Sensitivity(lux)≤18mK（0.018℃)
Frame rate(Hz)50
Frame rate(Hz)1800
Objective lens(mm)35
480 Optical Magnification(x)3.5
640 Optical Magnification(x)2.6
Digital zoom(x)2/4/6/8
480 Horizontal Field of view(°)9.4
480 Vertical Field of view(°)7.1
480 Diagonal Field of view(°)11.7
640 Horizontal Field of view(°)12.5
640 Vertical Field of view(°)10
640 Diagonal Field of view(°)16
480 Horizontal Field of view (m @100m)16.5
480 Vertical Field of view (m @100m)12.3
640 Horizonal Field of view (m @100m)21.9
640 Vertical Field of view (m @100m)17.6
Focus range3m ~ ∞
Diopter adjustment(D)±5D
Display TypeOLED
Display Resolution(pixel)1920*1080
Image modeWT-HOT/BK-HOT/H-light/RD-HOT/IN-HOT/SKY
Photo Resolution(pixel)1440*1080
Photo Format.JPG
Video Resolution(pixel)1440*1080
Video Format.mp4
LRF/m1000
CompassYes
PIPYes
Auto recordingYes
Loop recordingYes
Time stampYes
Record audioYes
Storage(GB)Micro SD card (Max. 128GB)
USB Type-CYes
WiFiYes
Supported AppsPardVision2
Battery typeLi-ion Battery 18650*1
Output voltage(V)3.7
Output voltage(V)6
External power supplyType-C
HousingAL6061 & Composite
Objective lensAll-glass multi-coated lens
Product dimension(L x W x H, mm)170*70*43
N.W/pcs(with battery, g)405
Reliable Thermal Detection with 12μm Pixels
With 480x360 (or 640x512) resolution and 12μm pixel size, this sensor provides solid thermal performance. It captures temperature variations effectively, aiding in precise target recognition.
Next-Gen Thermal Sensor with Superior Sensitivity
Equipped with a new generation sensor (NETD ≤ 18mK), this device detects even the smallest thermal differences. It delivers thermal images with exceptional detail—making it ideal for precision spotting in any environment.
Vivid OLED Visuals with Exceptional Clarity
The 1920×1080 OLED display offers enhanced brightness, sharper resolution, and superior contrast compared to traditional LCDs. It provides more lifelike imagery, making it easier to spot and identify targets.
