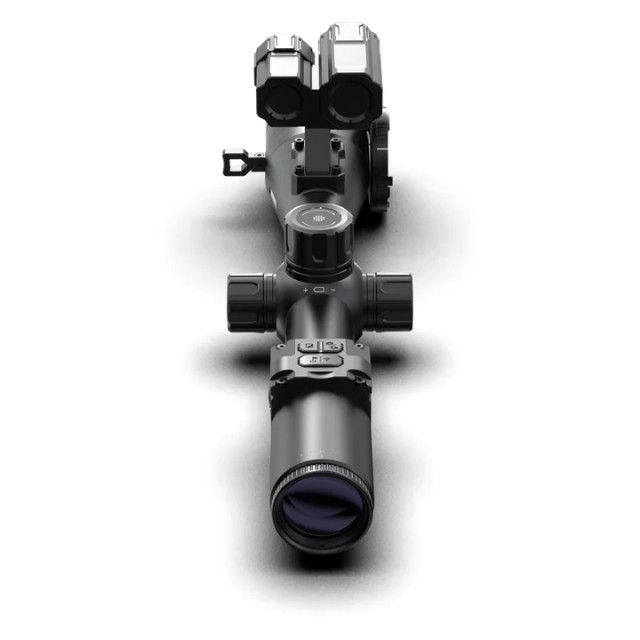

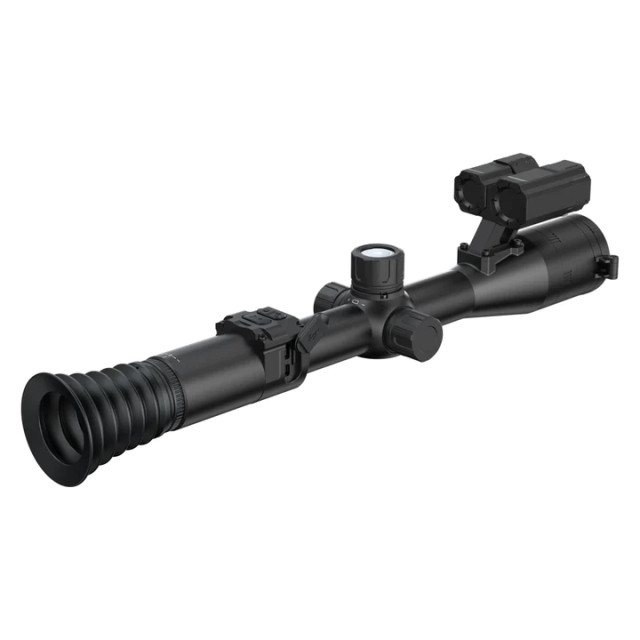

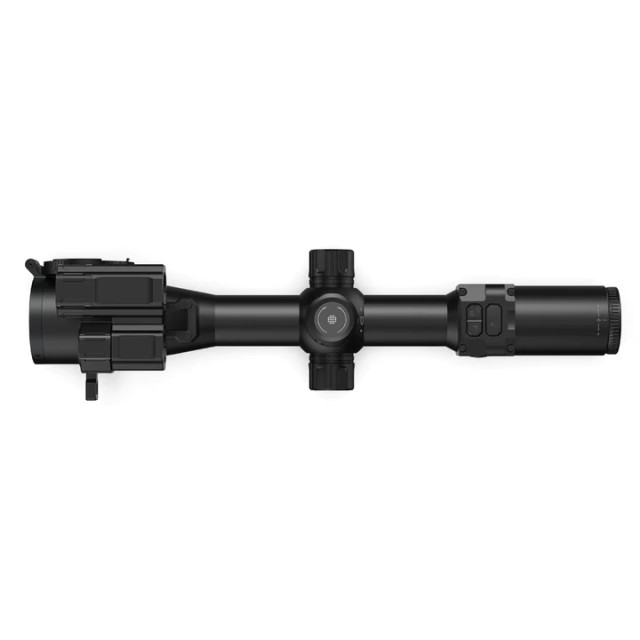

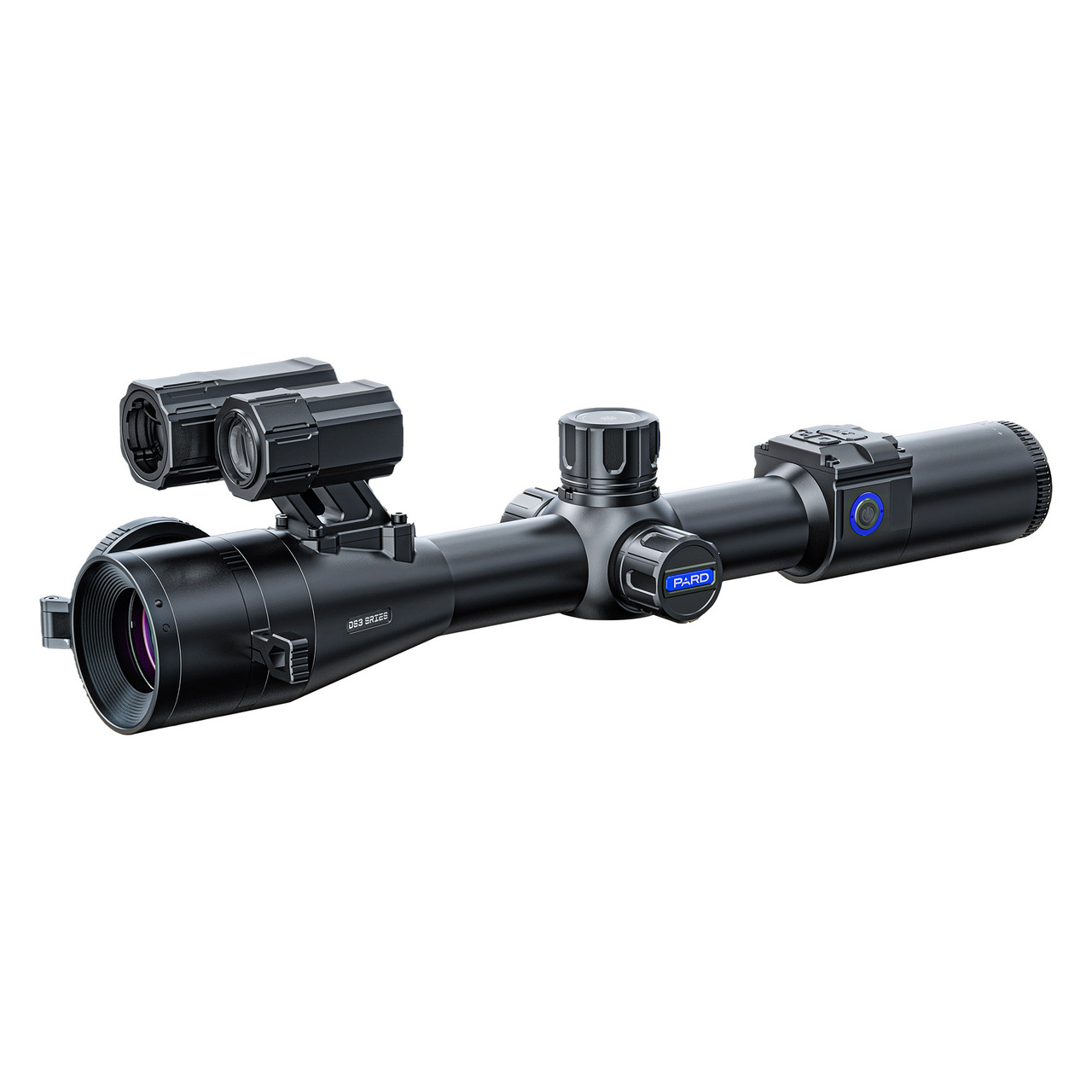

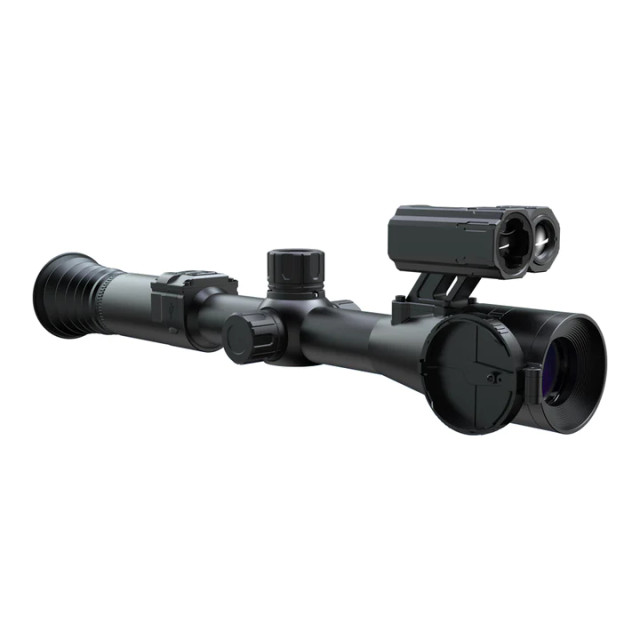

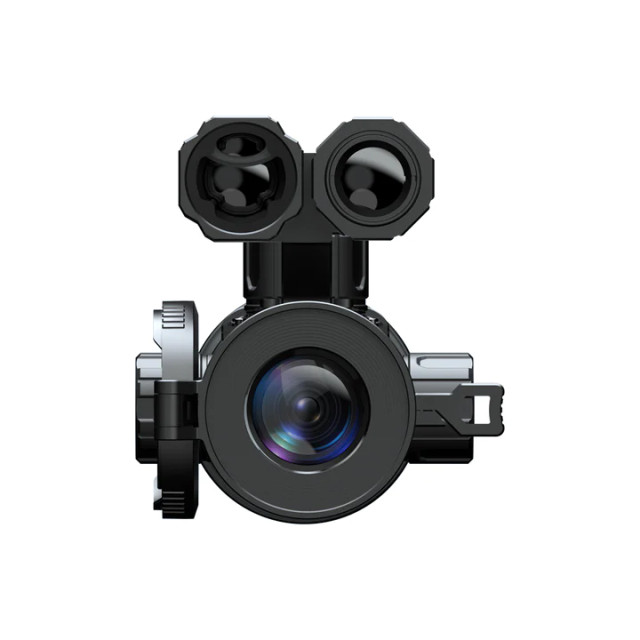

The DS35-LRF is a groundbreaking digital night vision riflescope that sets a new standard in imaging innovation. Featuring a 0.001 lux CMOS sensor and 800×800 IPS circular display, it provides lifelike clarity and true-to-scope visuals unmatched in the industry. The patented free-focus lens cap allows shooting with the cap on—light control is achieved through a precision aperture that manages illumination for optimal performance.
Designed with comfort and precision in mind, the 100mm eye relief offers safe and natural target acquisition, even under recoil. Integrated within the system is a 1200m laser rangefinder (LRF) that automatically communicates with the onboard ballistic calculator, instantly adjusting reticle placement for perfect shot alignment.
Available with 50mm or 70mm lens options and 850nm or 940nm IR illuminators, the DS35-LRF maintains reliable identification and target tracking out to 350 meters. The auto-record feature captures every moment, saving 20-second video clips directly to the internal Micro SD card, ensuring no shot or observation is ever lost.

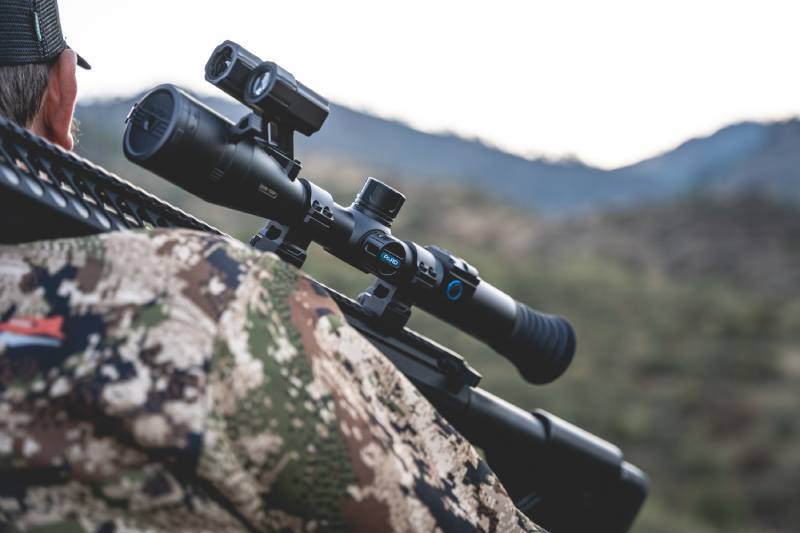

Engineered for the outdoors, the IP67-rated housing protects against water, dust, and harsh weather, while Wi-Fi connectivity allows seamless sharing via Android or iOS devices. Users can customize their experience with six digital reticle styles and two reticle color options, all easily navigated through the multi-function control knob for rapid adjustments in the field. The standard 30mm mounting rings ensure universal compatibility with modern rifle platforms.
Resolution(px)2560*1440
Pixel size(um)2.9um
Sensitivity(lux)0.001lux
Frame rate(fps)30fps(night); 60fps (day)
Image EnginePARD VLEA
DS35 50mm Objective lens50mm F2.4
DS35 70mm Objective lens70mm F2.4
DS35 50mm Optical Magnification(x)4x
DS35 70mm Optical Magnification(x)5.6x
Digital zoom(x)2x
PIP(x)2x
DS35 50mm Continuous digital zoom4-16x
DS35 70mm Continuous digital zoom5.6-22.4x
DS35 50mm Field of view (HxV) Horizontal4.8º
DS35 70mm Field of view (HxV) Horizontal3.4º
DS35 50mm Field of view (HxV) Vertical3.6º
DS35 70mm Field of view (HxV) Vertical3.4º second?
DS35 50mm Field of view (HxV) Diagonal5.1º
DS35 70mm Field of view (HxV) Diagonal4.8º
Focus range5m-∞
Eye relief(mm)100mm
Exit pupil(mm)10mm
Diopter adjustment(°)-3D~+5D
IR TypeVCSEL
IR power5W
IR illuminating level3 levels
IR distance(m)350m
IR Wavelength(nm)850nm/940nm
TypeIPS LCD
Resolution(px)800*800
Reticle Style6
Reticle Colorwhite,yellow,green
Color modeColor,Mono BW,Mono Green,Mono Yellow
DS35 50mm Photo resolution(px)1920*1080
DS35 70mm Photo resolution(px)2560*1440
Photo formatJPG
Video resolution(px)1920*1080
Video formatMP4
Storage(GB)TF card(128GB)
PIPYes
LRF detection range(yds)1200yds(LRF version)
Ballistic calculatorYes
Range unit selectionmeter/yard
GyroscopeYes
Self-activated recordingYes
Auto recordingYes
Loop recordingYes
Time stampYes
Record audioYes
Beep soundYes
Exposure compensationYes
USB Type-CTYPE C
HDMI OutputYes
WiFiYes
Supported AppsPardVision
Battery typeLithium Ion18650
Output voltage(V)3.7
Operating time(h,max)8
External power supply(V)USB Type-C
Degree of protectionIP67
Operating temp(°C)-20 – 50
Recoil Power(J)6000
HousingAluminium Alloy
Objective lensGlass
Product dimension(L x W x H, mm)L350mm*W88mm*H95mm(W/O Long Eyepiece) L410mm*W88mm*H95mm(W/ Long Eyepiece)
N.W/pcs(without battery, g)680g(W/O Battery)
Sharp Vision & True Low-Light Performance
Delivering 2560×1440 resolution, this CMOS sensor captures ultra-clear images with fine detail. Its 0.001 lux sensitivity ensures visibility in extreme darkness—making it ideal for night patrols, wildlife observation, or tactical missions.
World's First True Circular Display
Smart Ballistics, LRF Optional

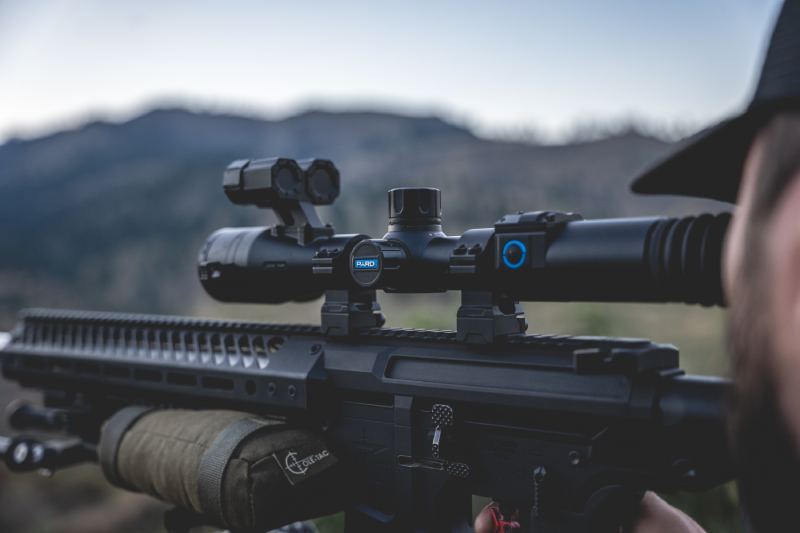

A powerful 1200-yard optional LRF, combined with a built-in ballistic calculator, delivers real-time aiming solutions based on distance, bullet weight, and other key parameters. Ideal for precision shooters, hunters, and tactical users seeking fast, intelligent targeting without guesswork.
