Availability: In Stock
Warranty: 2-Year Limited Warranty
Shipping: Confirmed orders will be shipped within 2 business days from our US warehouse

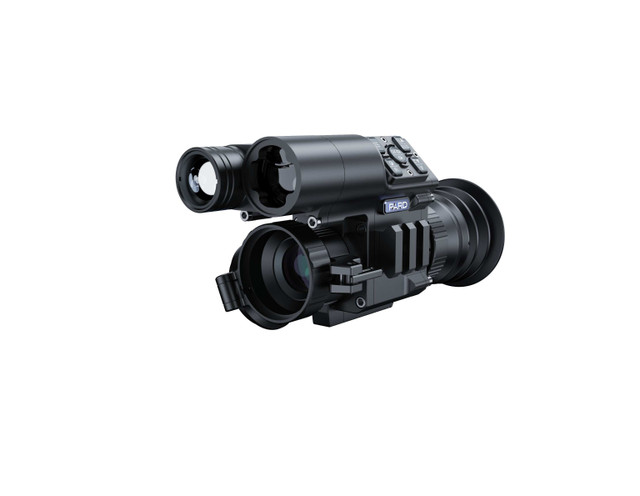

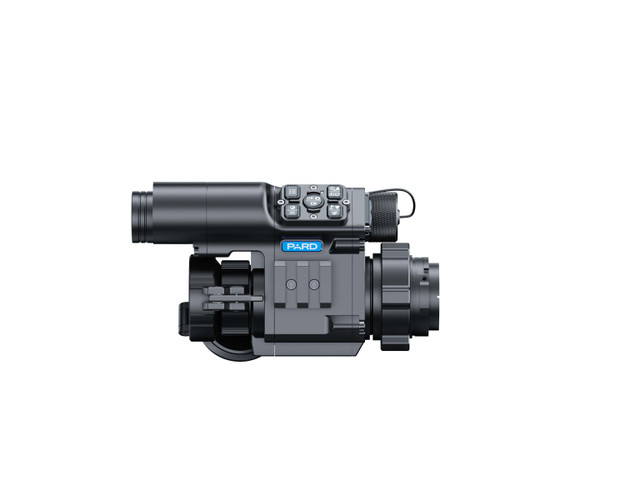

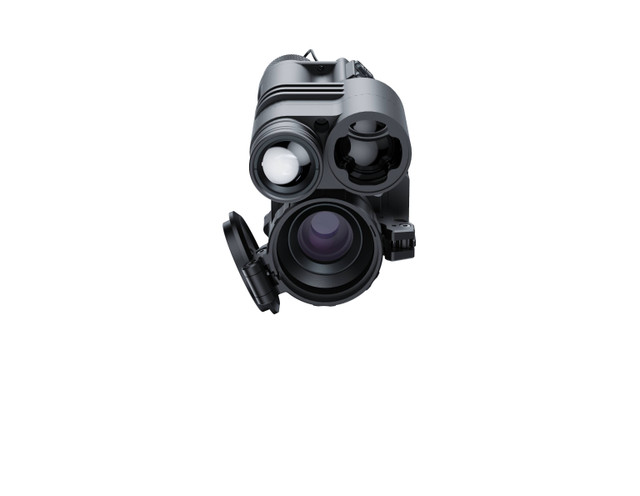

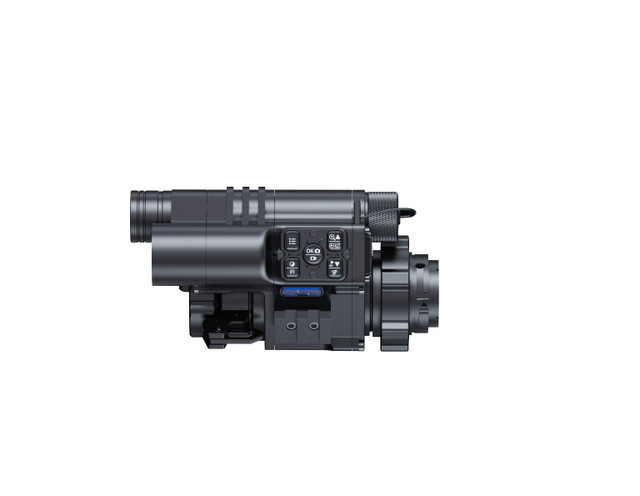

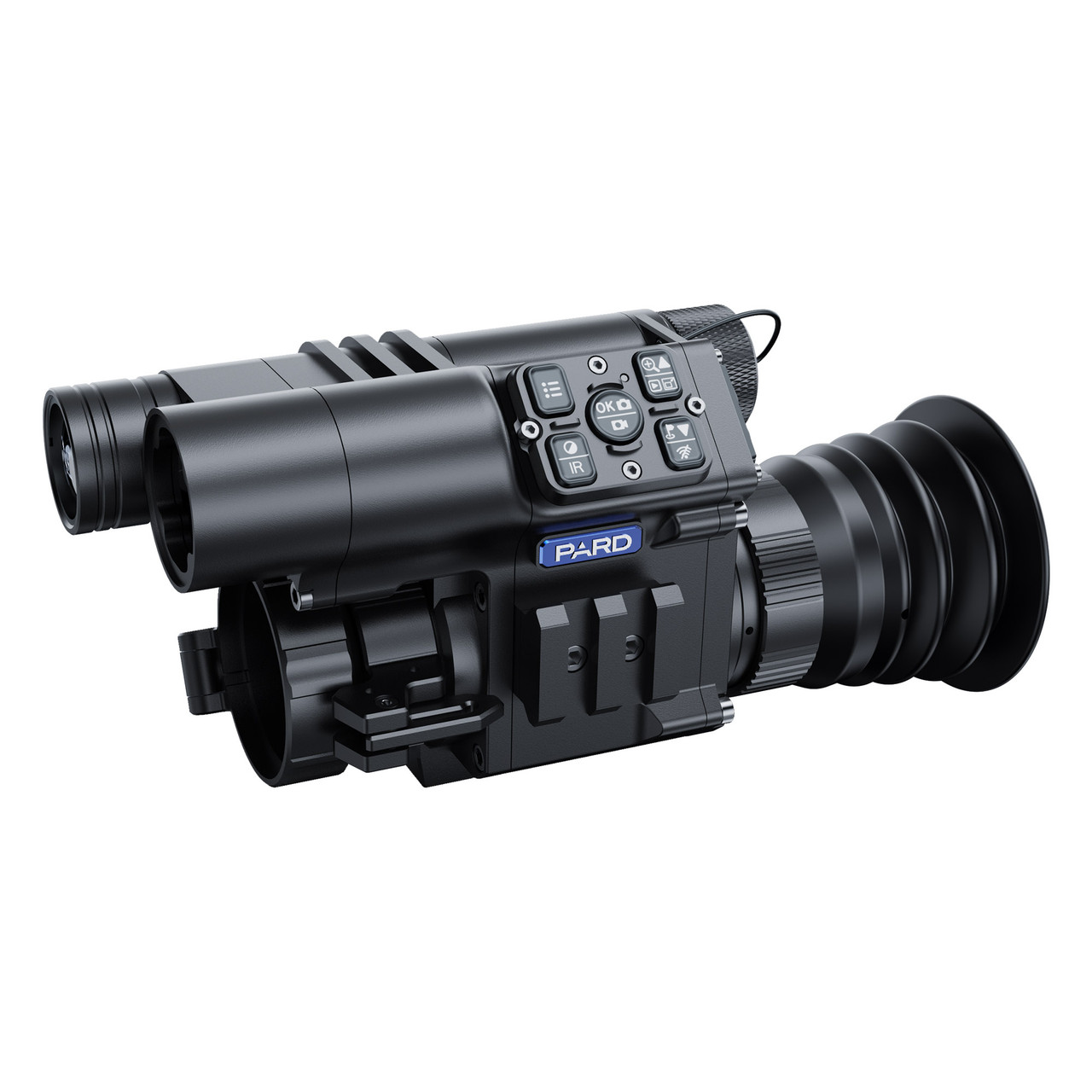

The FD1-LRF features a 1920×1080 CMOS sensor paired with a sharp 1440×1080 OLED display, delivering crisp, detailed night vision imagery. Its integrated laser rangefinder and ballistic calculator enable precise shot placement for confident long-range engagements.
The built-in IR illuminator extends visibility up to 380 yards, while picture-in-picture (PIP) zoom allows for enhanced situational awareness. The FD1-LRF also includes recoil-activated video recording, capturing key moments automatically.
Built for durability and portability, the FD1-LRF is IP67-rated, shockproof up to 6000 J, and compact enough for easy transport. Its all-in-one design ensures reliable, professional-grade night vision in any field environment.
ModelFD1/FD1-LRF
ClassificationDigital Night Vision Front Clip-on
TypeCMOS
Resolution(px)1920*1080
Pixel Size(µm)2.9
Frame Rate(Hz)Color:60/B&W:30
Image EnginePARD VLEA
Optics FD1 PurposeRifleScope/Monocular
Optics FD1-LRF PurposeClip-on
Objective Lens(mm)30
FD1 Optical Magnification(x)3.5
FD1-LRF Optical Magnification(x)1
FD1 Digital Zoom(x)2
FD1-LRF Digital Zoom(x)N/A
Field of view (HxV) Horizontal7.9
Field of view (HxV) Vertical5.9
Field of view (HxV) Diagonal9.9
FD1 Eye Relief(mm)30
FD1-LRF Eye Relief(mm)N/A
FD1 Diopter Adjustment- 5D~+5D
FD1-LRF Diopter AdjustmentN/A
Display FD1 PurposeRifleScope/Monocular
Display FD1-LRF PurposeClip-on
TypeOLED
Resolution(px)1440*1080
Reticle Style6
FD1 Reticle ColorRed/White/Yellow/Green
FD1-LRF Reticle ColorN/A
Display Image ModeColor /Mono
Photo Resolution(px)2592*1944
Photo Format.JPG
Video Resolution(px)TBD
Video Format.mp4
StorageTF card(128 GB,Max)
FD1 Main function PurposeRifleScope/Monocular
FD1-LRF Main function PurposeClip-on
LRF Detection Range1200yd
FD1 Ballistic CalculatorYes
FD1-LRF Ballistic CalculatorN/A
FD1 PIPYes
FD1-LRF PIPN/A
Self-motivated RecordingYes
Loop RecordingYes
MicrophoneYes
IR Wavelength(nm)850/940
IR Illuminating Level3 Levels
USB Tpye-CYes
WiFiYes
Supported AppsPardVision
Battery TypeLithium Ion 18650
Output Voltage(V)3.7
Operating Time(h)≤8
External Power SupplyType-C
Protective ClassIP67
Operating Temp--4℉~122℉/-20℃~50℃
Recoil Resistance(J)6000
HousingAluminum Alloy
Extended 350m IR Illumination
With a powerful infrared emitter reaching up to 380 yards, this device ensures clear target visibility in total darkness. Perfect for night operations, it enhances detection range and maintains stealth without visible light exposure.
Vivid OLED Visuals with Exceptional Clarity
The 1440x1080 OLED display offers enhanced brightness, sharper resolution, and superior contrast compared to traditional LCDs. It provides more lifelike imagery, making it easier to spot and identify targets.
Sharp Vision & True Low-Light Performance
Delivering 1920x1080 resolution, this CMOS sensor captures ultra-clear images with fine detail. Its 0.001 lux sensitivity ensures visibility in extreme darkness—making it ideal for night patrols, wildlife observation, or tactical missions.
