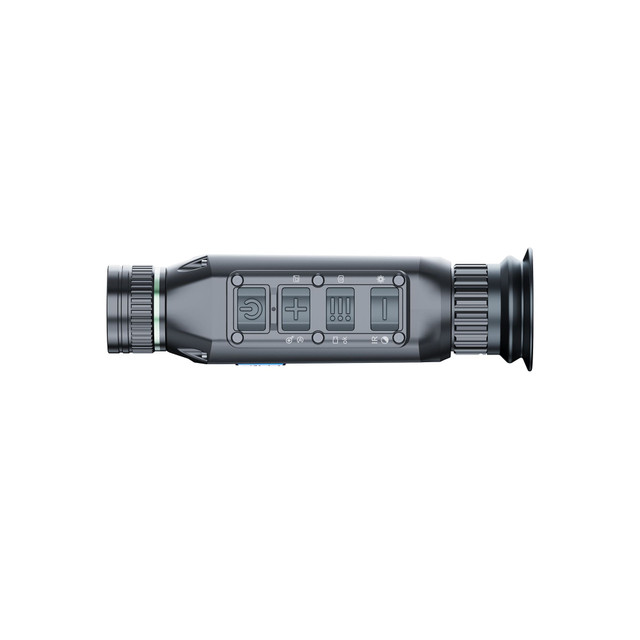

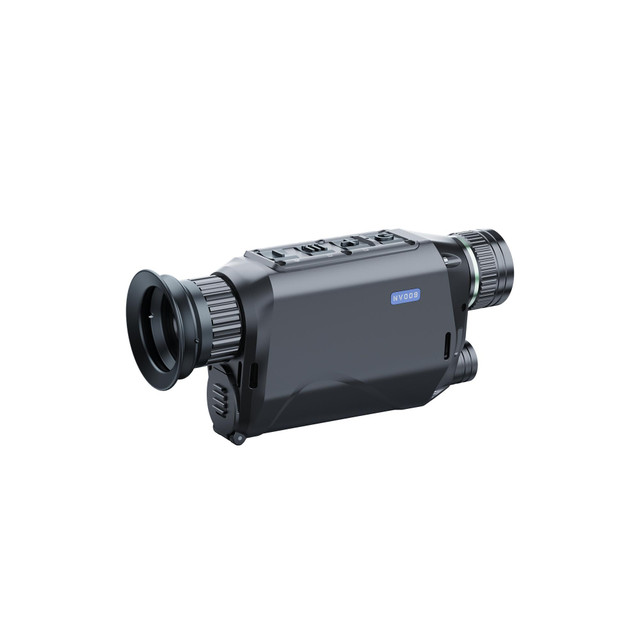

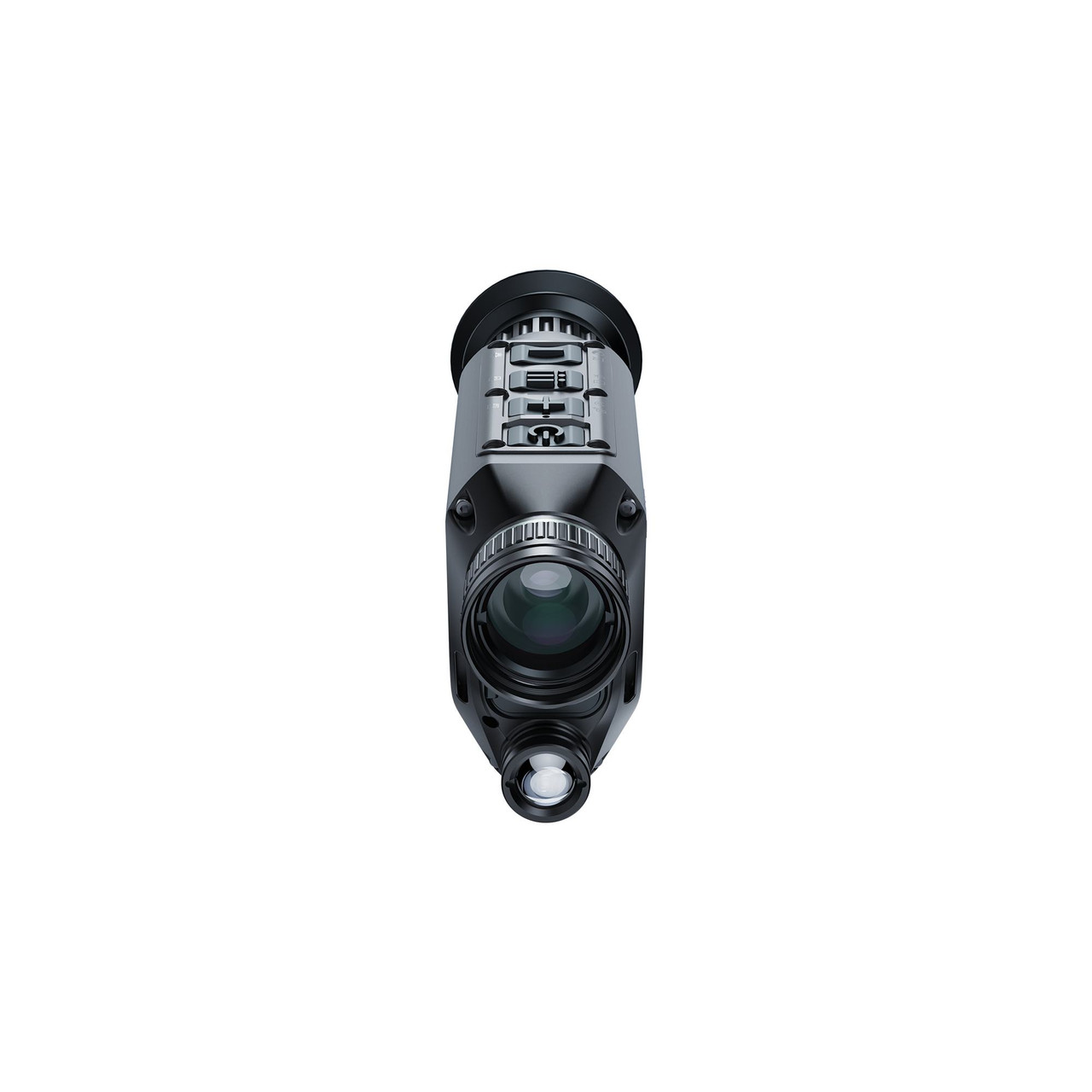

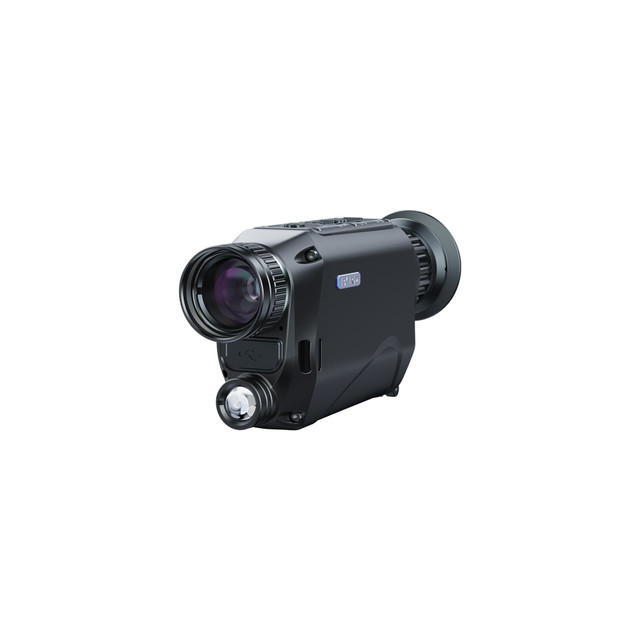

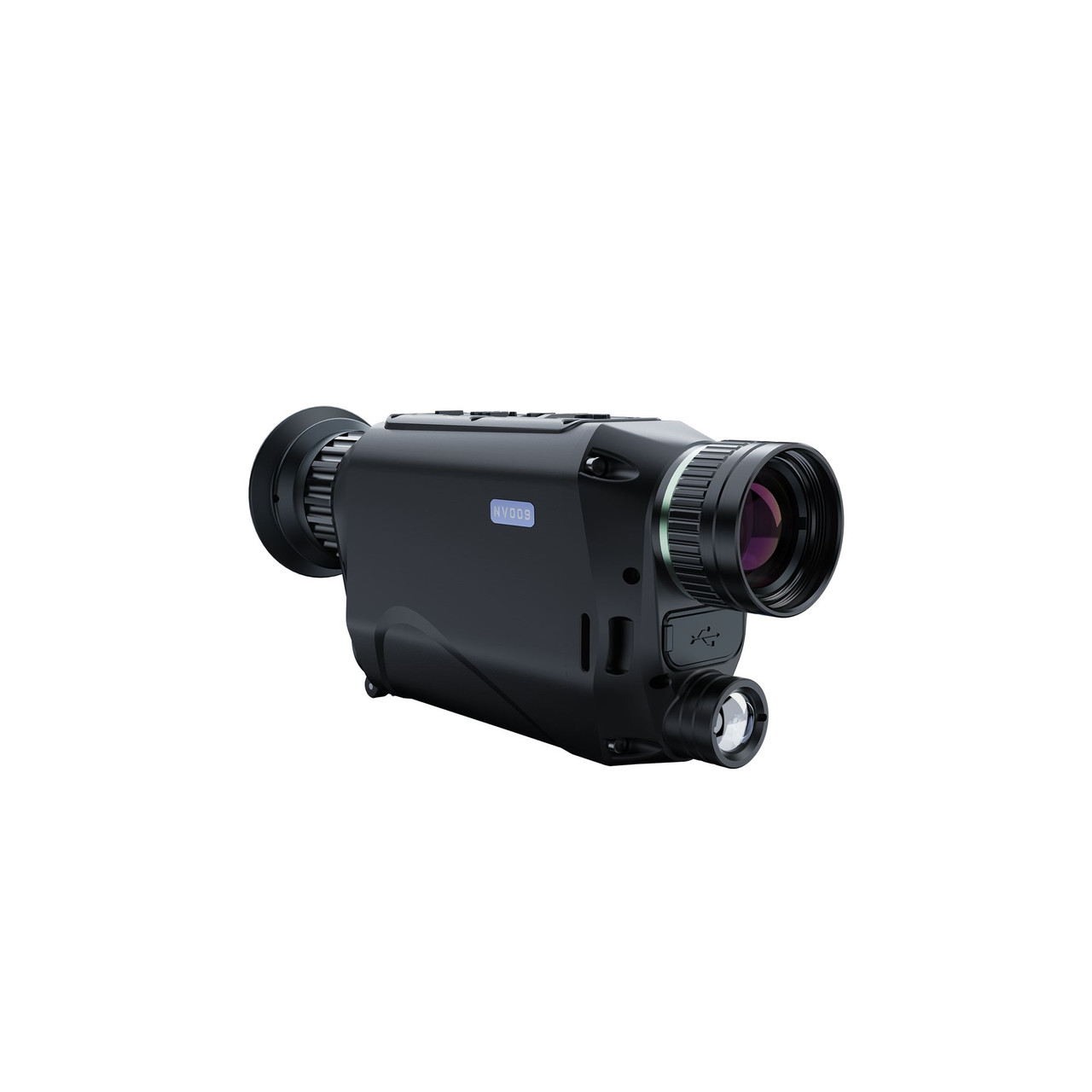

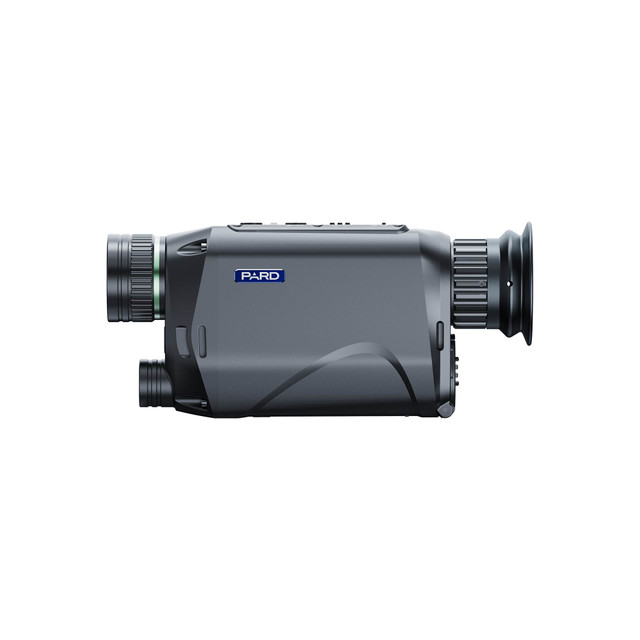

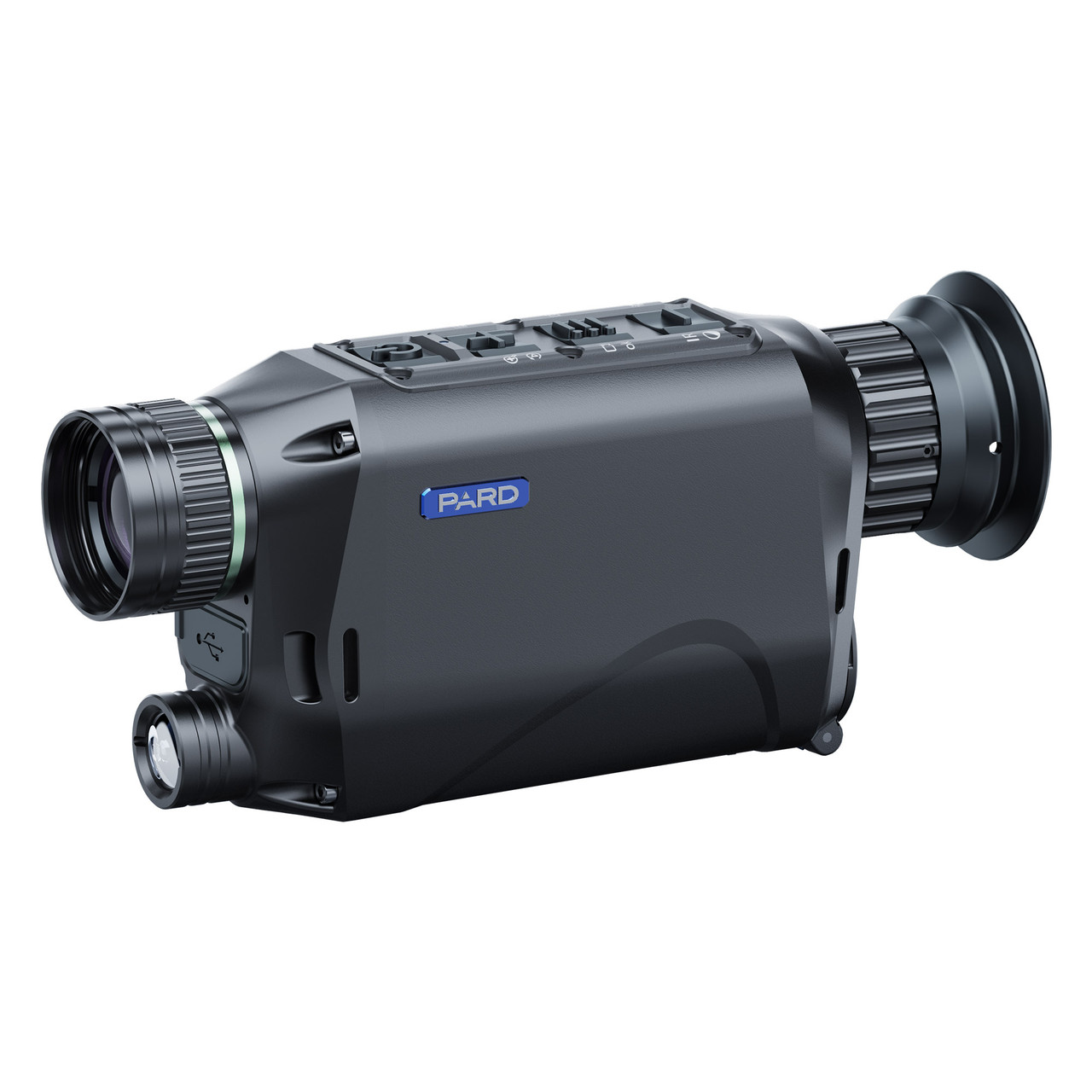

The NV009 uses its 35mm lens to gather maximum ambient light for the 1920×1080 CMOS sensor, producing sharp images on the 1024×768 OLED display. The scope includes high-resolution photo and video capture, as well as PIP mode for simultaneous viewing of multiple images.

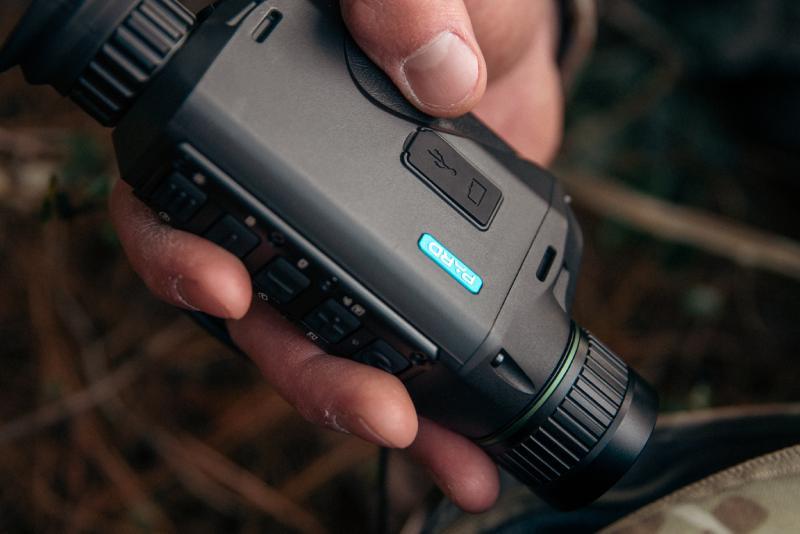

Designed for durability and versatility, the NV009 is IP67-rated for weatherproofing, features a removable 128GB micro SD card, and is powered by rechargeable/removable 18650 Li-Ion batteries. It also includes an electronic compass, Wi-Fi connectivity via the PardVision app, and aluminum construction for rugged field use. Multiple image color modes allow adaptation to different lighting and terrain conditions.
Perfect for hunters, tactical operators, and outdoor enthusiasts, the PARD NV009 delivers reliable night vision performance in a compact, portable package.
ModelNV009
Sensor TypeCMOS
Sensor Resolution(pixel)1920*1080
Pixel size(μm)2.9
Sensitivity(lux)0.001
Frame rate(Hz)60/30
Image EnginePARD VLEA
Objective lens(mm)35
Optical Magnification(x)4.7
Digital zoom(x)1.5-3.0
Continuous digital zoom(x)7~14
Horizontal Field of view (HxV)9.1°
Vertical Field of view (HxV)5.1°
Diagonal Field of view (HxV)10.4°
Focus range3m-∞
Eye relief(mm)25
Exit pupil(mm)6
Diopter adjustment(D)± 5D
IR TypeVCSEL
IR power(W)5
IR illuminating level3 Levels
IR distance(m)200
IR Wavelength(nm)850/940
Display TypeOLED
Display Resolution(pixel)1024*768
Color modeColor/Black&white
Photo resolution(pixel)2592*1944
Photo format.JPG
Video resolution(pixel)1920*1080
Video format.mp4
Storage(GB)Micro SD card (Max. 128GB)
PIPYes
E-compassYes
Auto recordingYes
Loop recordingYes
Time stampYes
Record audioYes
Beep soundYes
Exposure compensationYes
USB Type-CYes
HDMI OutputYes
WiFiYes
Supported AppsPardVision
Battery type18650 Li-ion*1
Output voltage(V)3.7
Operating time(h,max)8
External power supply(V)USB Type-C
Degree of protectionIP67
Operating temp(°C/°F)-20 ~ +50 / -4 ~ +122
HousingAL6061 & Composite
Objective lensGlass
Product dimension(L x W x H, mm)150 x 70 x 38
N.W/pcs(with/without battery, g)260/306
Sharp Vision & True Low-Light Performance
Delivering 1920x1080 resolution, this CMOS sensor captures ultra-clear images with fine detail. Its 0.001 lux sensitivity ensures visibility in complete darkness—making it ideal for night patrols, wildlife observation, or tactical missions.
Vivid OLED Visuals with Exceptional Clarity
The 1024x768 OLED display offers enhanced brightness, sharper resolution, and superior contrast compared to traditional LCDs. It provides more lifelike imagery, making it easier to spot and identify targets.
Sharp Vision & True Low-Light Performance
Delivering 1920x1080 resolution, this CMOS sensor captures ultra-clear images with fine detail. Its 0.001 lux sensitivity ensures visibility in extreme darkness—making it ideal for night patrols, wildlife observation, or tactical missions.
