Availability: In Stock
Warranty: 2-Year Limited Warranty
Shipping: Confirmed orders will be shipped within 2 business days from our US warehouse

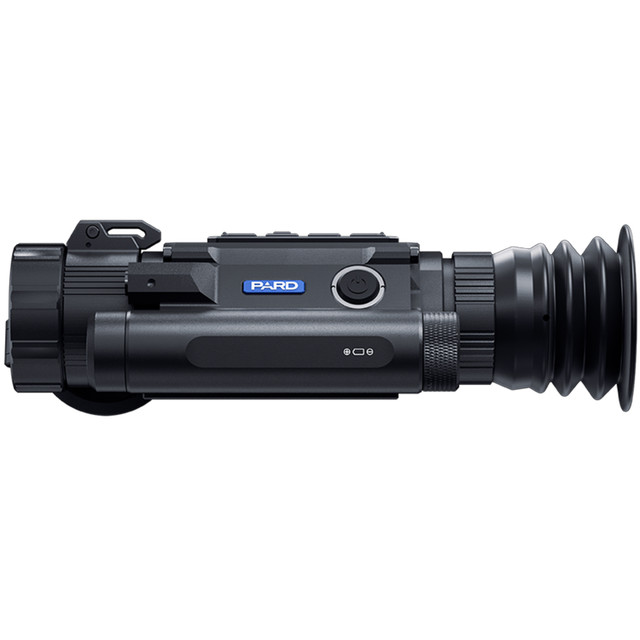

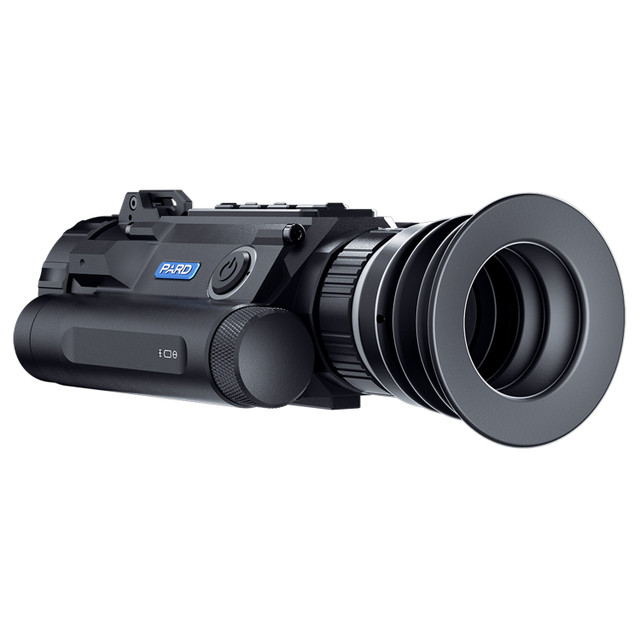

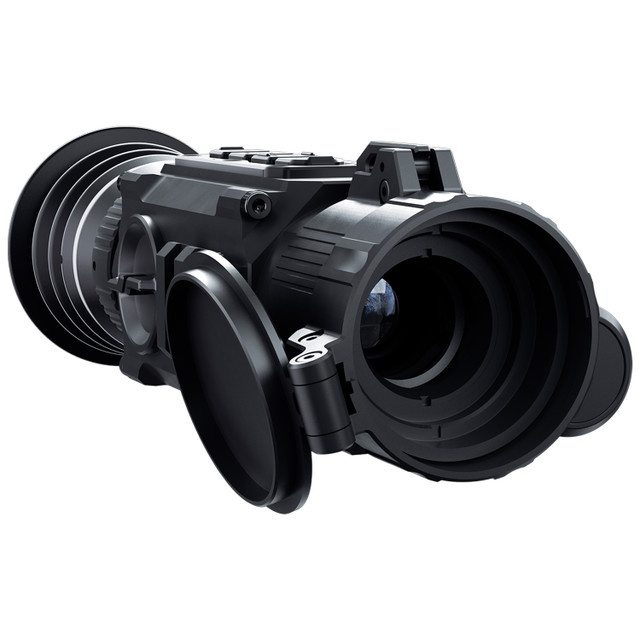

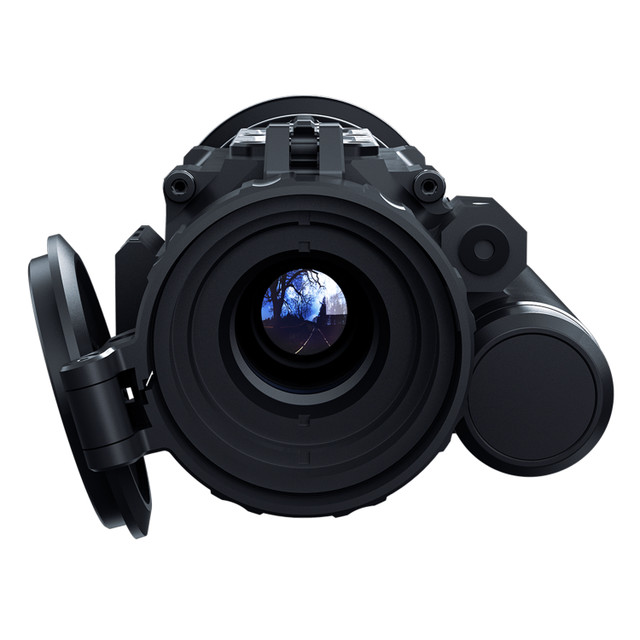

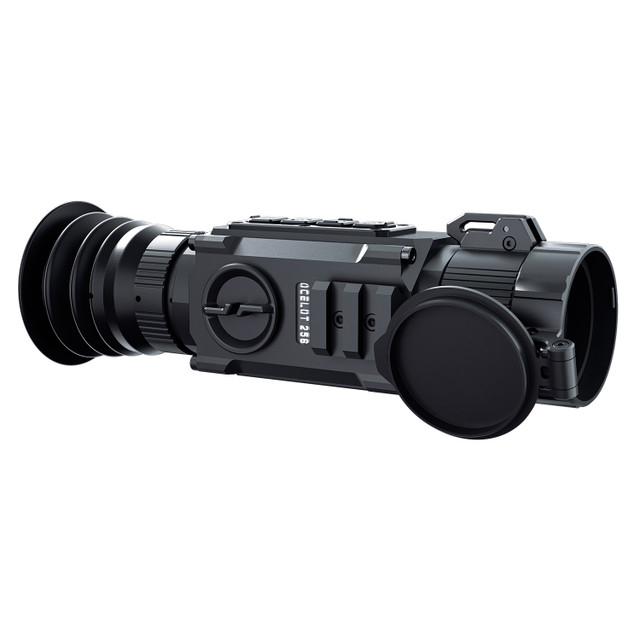

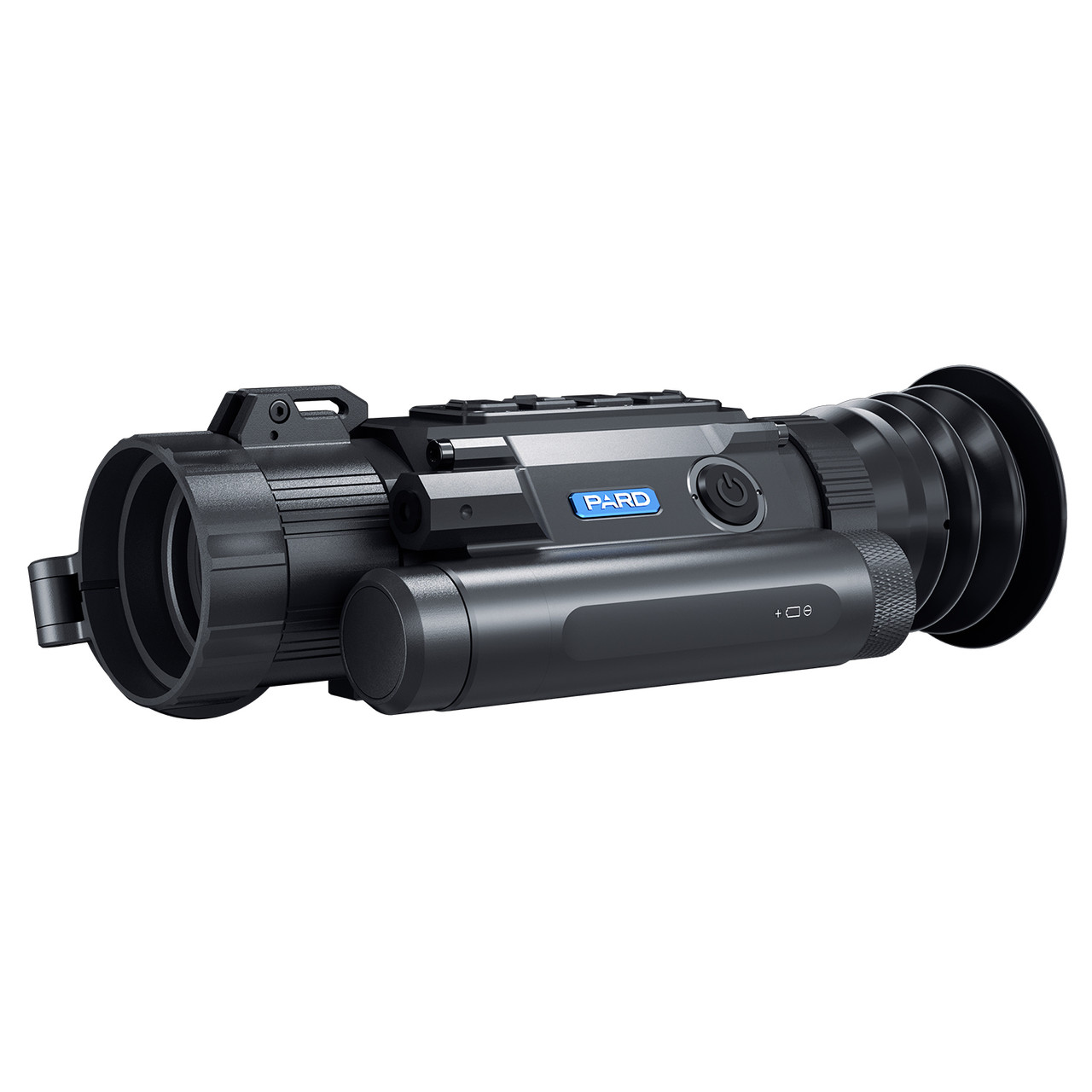

The Ocelot 256 19mm Thermal Monocular is a compact, lightweight, and ergonomic scope designed for hunters, outdoor enthusiasts and tactical professionals who need reliable thermal imaging on the go. Weighing just 14.8 ounces and measuring 182 × 68 × 79mm, it's perfect for easy handling in the field.
Equipped with a high-sensitivity thermal sensor (NETD ≤25mK), the Ocelot 256 delivers clear imaging even in low-contrast thermal environments, ensuring you never miss a target. The variable magnification from 3.2x to 25.6x allows both close-up observation and long-range spotting, making it essential for quickly spotting targets, monitoring movement, and ensuring accurate decisions even when visibility is poor.
Its compact size, lightweight design, and user-friendly ergonomics make the Ocelot 256 versatile when space is limited.
TypeUncooled VOx(vanadium oxide)
Resolution(pixel)256*192
Pixel Size(µm)12*12
NETD≤25mK（ 0.025℃)
Frame rate(Hz)50
Human Detection Distance(m)900
Objective Lens(mm)19
Optical Magnification(x)3.2
Digital Zoom(x)2/4/6/8
Field of View (Horizontal)9.2°
Field of View (Vertical)6.9°
Field of View (Diagonal)11.5°
Focus range3m-∞
Diopter adjustment(D)-5~5
Eye Relief(mm)30
TypeOLED
Resolution(pixel)1024*768
Reticle Style5
Reticle Color4(Red/White/Yellow/Green)
Scene ModeCity/Rain/Forest
Image ModeWT-HOT/BK-HOT/IN-HOT/RD-HOT/SKY
Photo resolution(pixel)1024*768
Photo Format.JPG
Video Resolution(pixel)1024*768
Video Format.mp4
Image EnginePard IREA
LRF Detection Range(yd/m)-
PIPYes
GyroscopeYes
Loop RecordingYes
E-compassYes
Storage(GB)Built-in EMMC (32 GB)
ShutterMechanical shutter
MicrophoneYes
Firmware UpgradeYes
USB Tpye-CYes
WiFiYes
Supported AppsPardVision2
Battery TypeLithium Ion 18650
Output Voltage(V)3.7
Operating Time(h)≤5
External Power SupplyType-C
Protective ClassIP67
Operating Temp(°C/°F)-30 ~ +55 / -22 ~ +131
HousingAluminium Alloy
Objective LensAll-glass multi-coated lens
Product Dimension(with LRF, L * W * H, mm)180*65*40
N.W/pcs(with LRF&battery, g)420
Ultra-Compact and Lightweight Design
Weighing just 14.8oz and measuring 182x68x79mm, this device is an ultra-compact design for easy carry. Perfect for field missions or mobile tasks, it minimizes bulk without sacrificing functionality—ideal when space and efficiency are important.
Crystal-Clear Thermal Imaging
Featuring a high-sensitivity sensor with NETD ≤ 25mK, the device delivers exceptionally sharp thermal images. It detects even the slightest temperature changes, providing enhanced clarity and detail—crucial for identifying targets, tracking movement, and making accurate decisions in challenging visual conditions.
Flexible Magnification Range
With 3.2x to 25.6x variable magnification, this device adapts seamlessly to various observation distances. Whether scanning wide terrain or zooming in for close-up detail, users enjoy smooth transitions and precise focus—ideal for target identification.
