Availability: In Stock
Warranty: 2-Year Limited Warranty
Shipping: Confirmed orders will be shipped within 2 business days from our US warehouse

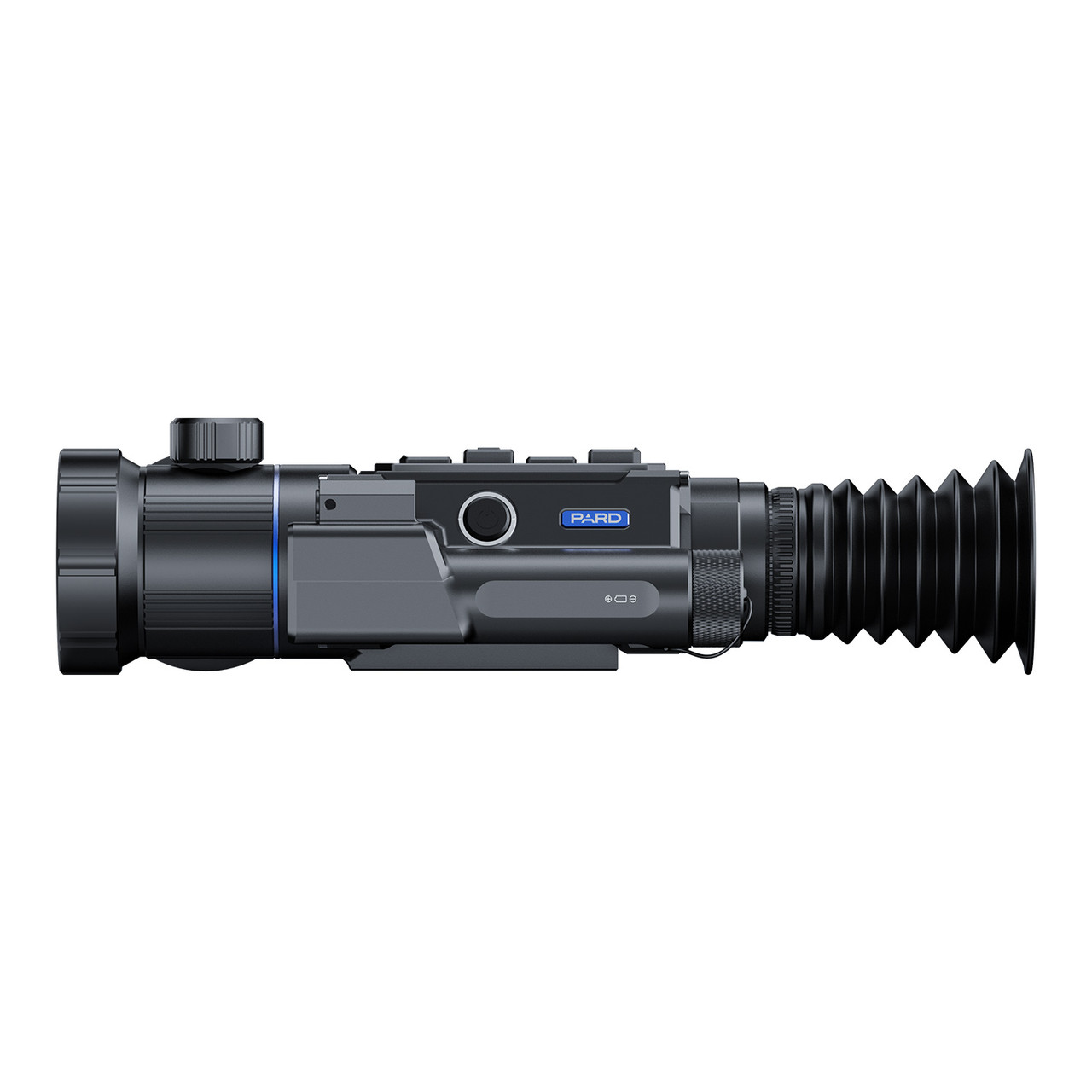

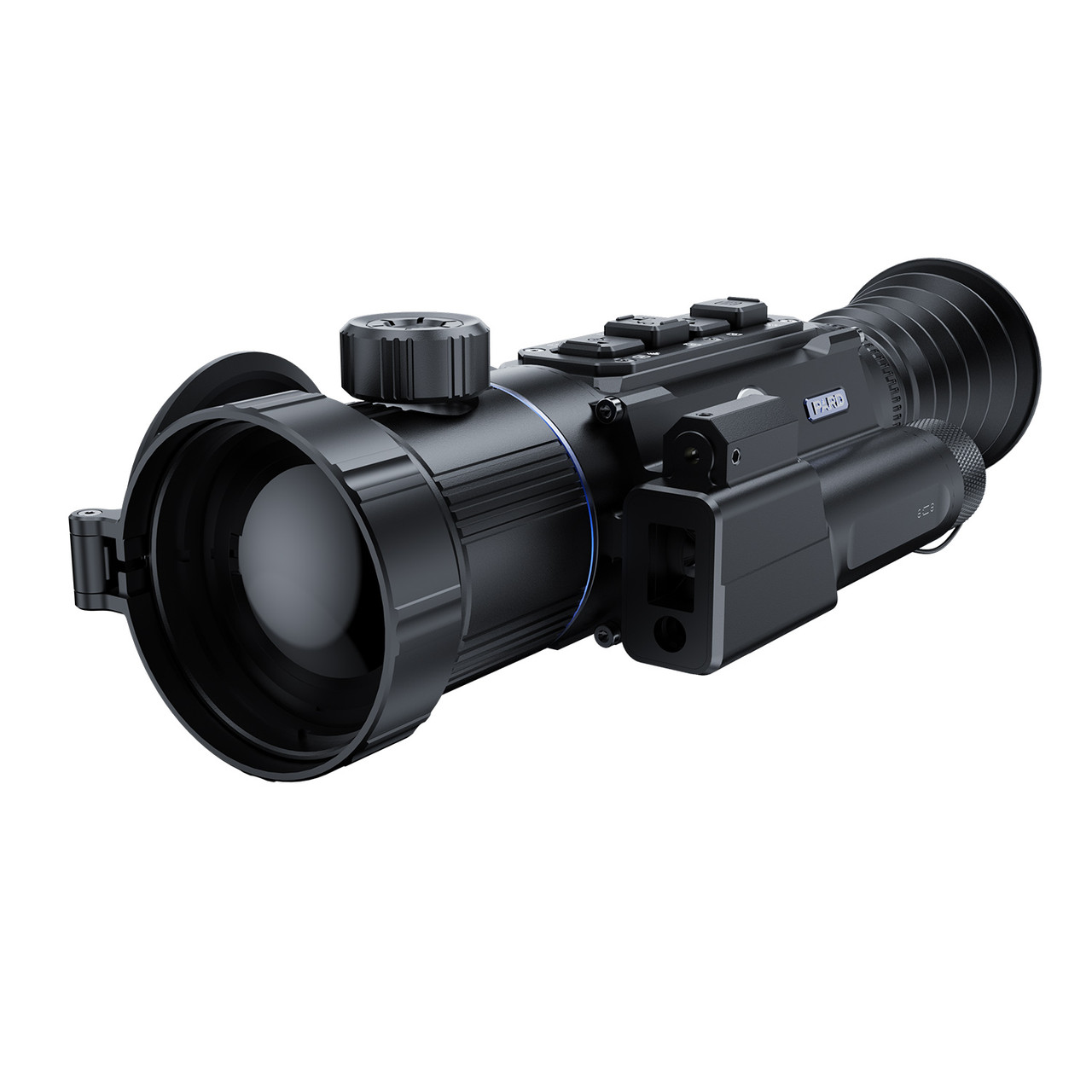

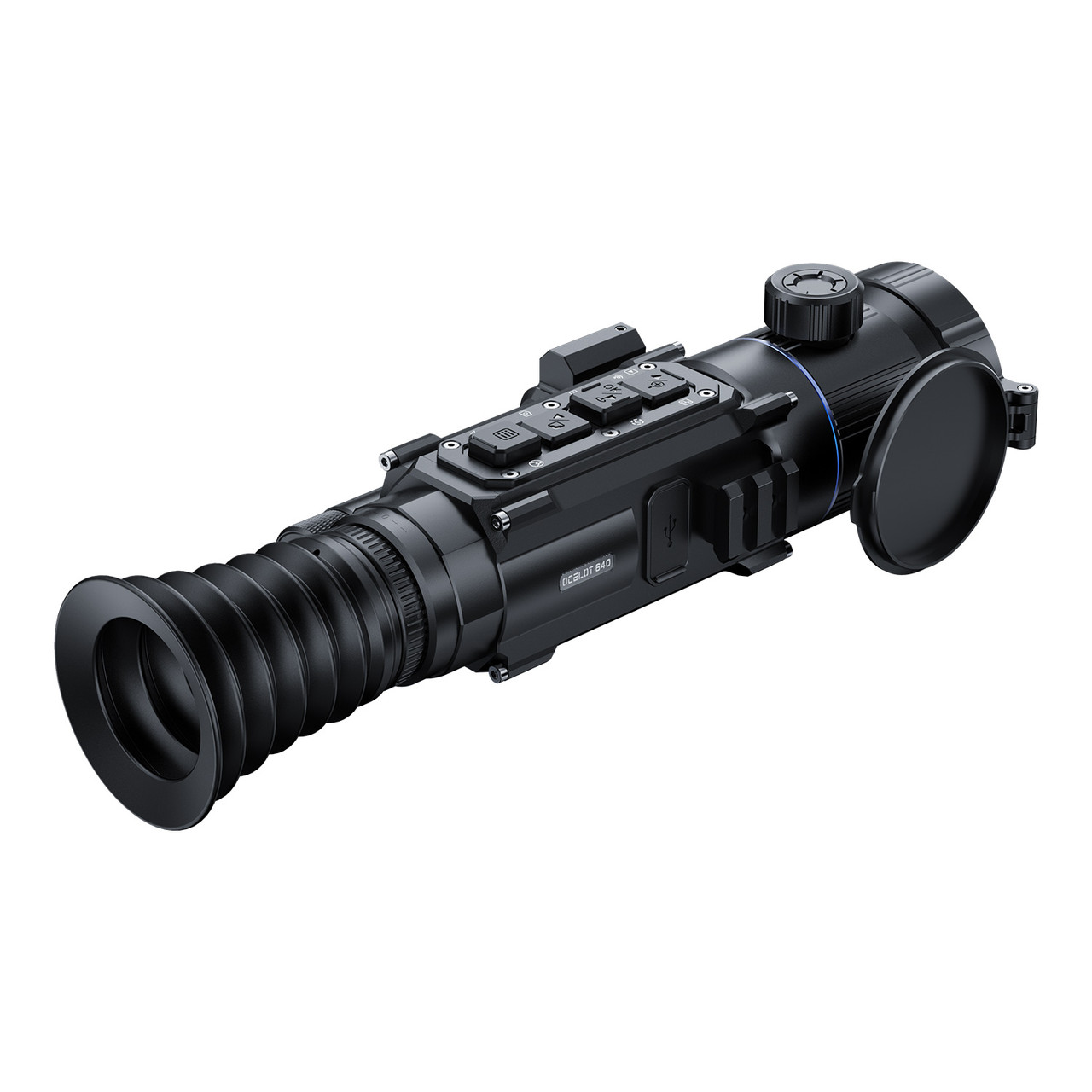

The Ocelot Series from PARD is engineered to deliver high-resolution thermal imaging, exceptional target detection and field-ready performance. Both models feature a 12 µm pixel-pitch vanadium oxide (VOx) sensor, with a Noise Equivalent Temperature Difference (NETD) ≤ 20 mK, ensuring superb performance even in low thermal contrast settings.
With an 800×800 circular IPS display and generous 100mm eye relief, the Ocelot provides a viewing experience similar to traditional scopes while offering the benefits of thermal technology. The built-in laser rangefinder (up to approximately 1200 yds) feeds data to the internal ballistic calculator, streamlining shot placement under real-world conditions.
Constructed with an aluminum alloy housing, IP67 weather-sealing, 50 Hz refresh rate, 2–8× digital zoom (plus optical base), Picture-in-Picture mode, recoil-activated/loop recording, WiFi/USB-C/HDMI connectivity, and compatibility with 21700 batteries, the Ocelot is built for demanding field use.
Ocelot 480: Equipped with a 480×360 sensor, this model offers a reliable thermal solution with base magnifications of ~2.3× (35mm lens) or ~3.3× (50mm lens), digital zoom to 8×, detection range up to ~1800 m (human target) and eye relief of 100 mm. It’s ideal for users seeking high‐value performance with strong field capability.
Ocelot 640: With an upgraded 640×512 sensor, the 640 model delivers finer image detail, greater detection range (~2600 m human target), and improved clarity in challenging conditions. Its base optical magnification is ~2.5× (50mm lens) and includes the same 2–8× digital zoom and 100 mm eye relief for comfortable use.
ModelOcelot 480, Ocelot 640
ClassificationThermal Imaging Scope
TypeUncooled VOx(vanadium oxide)
Ocelot 480 Resolution(px)480*360
Ocelot 640 Resolution(px)640*512
Pixel Size(µm)12*12
NETD≤20mK（0.020℃）
Frame Rate(Hz)50
Ocelot 480 Human Detection Distance(m)1800/2600
Ocelot 640 Human Detection Distance(m)2600
Ocelot 480 Objective Lens(mm)35/50
Ocelot 640 Objective Lens(mm)50
Ocelot 480 Optical Magnification(x)2.3/3.3
Ocelot 640 Optical Magnification(x)2.5
Digital Zoom(x)2/4/6/8
Ocelot 480 Field of view (HxV) Horizontal7.1°/5.0°
Ocelot 640 Field of view (HxV) Horizontal7.0°
Ocelot 480 Field of view (HxV) Vertical7.1°/5.0°
Ocelot 640 Field of view (HxV) Vertical7.0°
Ocelot 480 Field of view (HxV) Diagonal10.0°/7.0°
Ocelot 640 Field of view (HxV) Diagonal9.9°
Eye Relief(mm)100
Diopter Adjustment(D)- 5~3
TypeIPS
Resolution(px)800*800
Reticle Style6
Reticle ColorRed/White/Yellow/Green
Scene ModeCity/Rain/Forest
Image ModeWT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Photo Resolution(px)1536*1536
Photo Format.JPG
Video Resolution(px)768*768
Video Format.mp4
StorageMicro SD card (128 GB,Max)
Image EnginePard IREA
LRF Detection Range1000m/1200yd
Ballistic CalculatorYes
PIPYes
GyroscopeYes
Recoil-activated RecordingYes
Loop RecordingYes
Hot TrackYes
E-compassYes
ShutterMechanical shutter
MicrophoneYes
Firmware UpgradeYes
USB Tpye-CYes
HDMI OutputYes
WiFiYes
Supported AppsPardVision2
Battery TypeLithium Ion 21700*1
Output Voltage(V)3.7
Operating Time(h)≤5
External Power SupplyType-C
Protective ClassIP67
Operating Temp(℃/°F))-30 ~ +55 / -22 ~ +131
Recoil Resistance(J)6000
HousingAluminum Alloy
Objective LensAll-glass multi-coated lens
Ocelot 480 Product Dimension(with LRF, L * W * H, mm)Ocelot 480-35mm lens: 182*68*79 Ocelot 480-50mm lens: 182*68*79
Ocelot 640 Product Dimension(with LRF, L * W * H, mm)182*68*79
Ocelot 480 N.W/pcs(with LRF&battery, g)Ocelot 480-35mm lens: 616.5g Ocelot 480-50mm lens: 647.5g
Ocelot 640 N.W/pcs(with LRF&battery, g)647.5g
Reliable Thermal Detection with 12μm Pixels
With 480x360 or 640x512 resolution and 12μm pixel size, this sensor provides solid thermal performance. It captures temperature variations effectively, aiding in precise target recognition.
World's First True Circular Display
This device proudly features the first true circular display ever developed, setting a new global standard in optical design. Combined with an extended 100mm eye relief, it delivers a more immersive, comfortable, and natural viewing experience—perfect for demanding tactical or outdoor use.
Smart Ballistics, Reliable Rangefinding
This system pairs a powerful 1200-yard LRF with a built-in ballistic calculator for instant, intelligent aiming solutions. No guesswork—just real-time shooting data based on distance, bullet weight and so on. Ideal for precision shooters, hunters, and tactical professionals.
